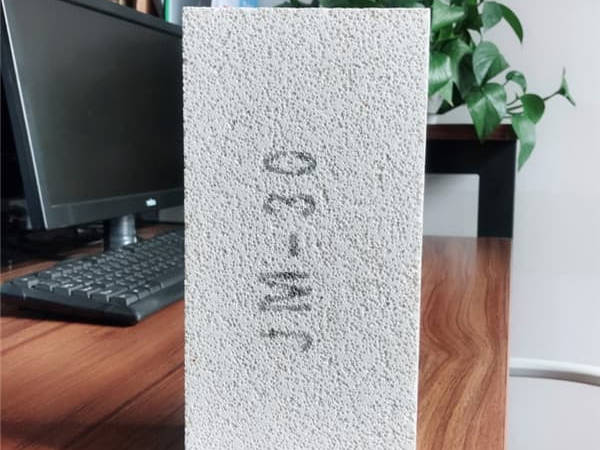

Lightweight JM30 Insulation Brick

Catalog: Mullite Insulation Brick | 2022-10-19

The JM30 insulation brick is made of high-purity refractory clay with progressively increasing alumina content and carefully saturated with organic filler before being burned during production t...

Product Details

refractory manufacturer

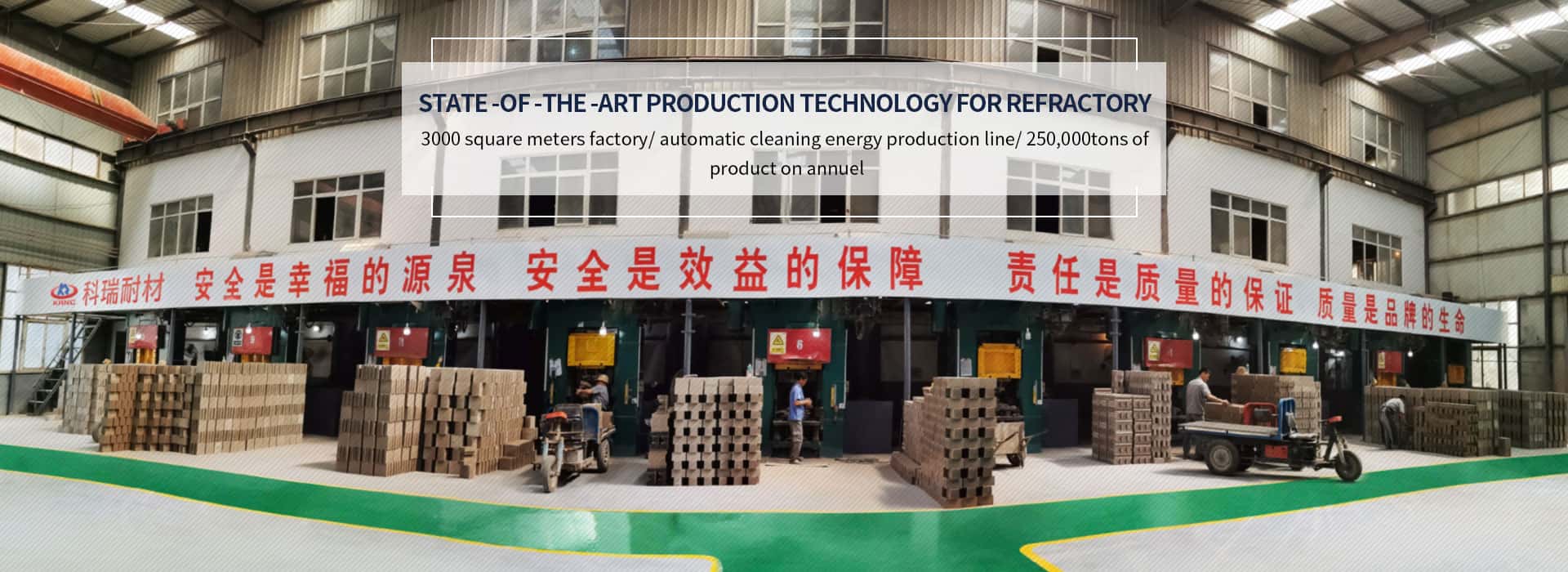

We are a refractory material manufacturer, with four major factories: heavy brick factory, light brick factory, monolithic refractory factory and fused-cast brick factory.
We promise to provide you with high-quality refractory materials.


The JM30 insulation brick is made of high-purity refractory clay with progressively increasing alumina content and carefully saturated with organic filler before being burned during production to form a homogeneous and controlled porous structure. All six walls of each brick were machined to achieve the required tolerances.

2.Advantages of JM30 insulation brick

1. Low thermal conductivity: It has good thermal insulation effect and can make the furnace wall thinner.
2. Low heat capacity: due to its light weight and low thermal conductivity, light mullite brick series products store little heat energy, which has obvious energy-saving effect in intermittent operation kilns.
3. Low impurity content: it has very low iron and alkali metal low melt content, so the refractoriness is high. The high aluminum content makes it maintain good performance in reducing atmosphere.
4. High thermal compressive strength.
5. Accurate overall dimensions: accelerate the masonry speed, and the brick joints are thin and uniform. Ensure high strength and stability of masonry.
6. It can be processed into special shape to reduce the number of blocks and masonry joints.

3. Parameters of JM30 insulation brick

IndexVolume
Density
Reheating
Linear
Change
Cold
Compression
Strength
Bending
Strength
At Normal
Temperature
Thermal
Conductivity
Al2O3SiO2Fe2O3
g/cm31400℃*12h,%MpaMpa350℃w/m·k%%%
JM30A1-0.831.80.472260.5
JM30B1.1-0.73.51.90.4372260.5
JM32A1.1-0.83.61.90.4375230.4
JM32B1.2-0.73.820.4675230.4

4. Application of JM30 insulation brick
The JM30 insulation brick can be used as a first refractory lining or backside insulation behind all other refractory layers in furnaces, ovens, fireways, refining chambers and heating furnaces, regenerators, natural gas production plants and pipelines, prospective furnaces, stress relief furnaces, reactor chambers and similar high temperature industrial installations.
